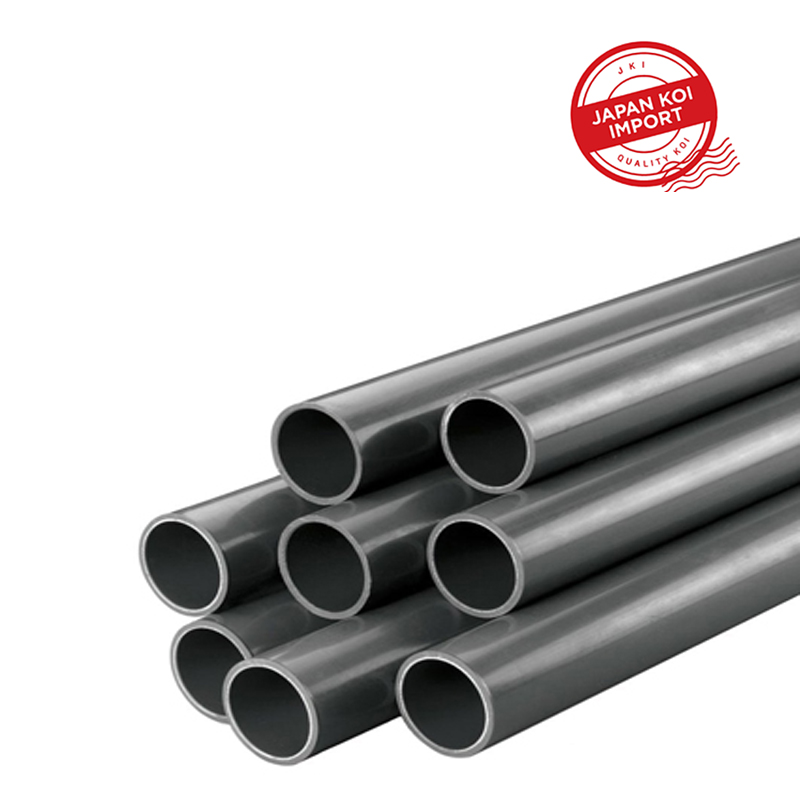

4″ Pressure pipe supplied in 3M lengths
The highest quality imperial pvc pipework and fittings.
Manufactured to the highest standards.
Available in a range of imperial sizes.
Join with solvent cement.
Imperial PVC Pipe Dimensions:
Imperial (inch) PVC pipe is measured in inches. The measurement relates to the nominal bore (the “approximate” bore) of the pipe, NOT the outside diameter.
Class E Size. — Pipe OD Wall. ——- Pipe ID
1″ —————- 33.6mm ————- 29.2mm
1 1/2″ ———– 48.3mm ————- 42.1mm
2″ —————- 60.3mm. ———— 52.5mm
3″ —————- 88.9mm ————- 77.5mm
4″ ————— 114.3mm ———— 99.7mm
All of our inch industrial PVC (PVCU) pipe is supplied in a mid to dark grey colour and is WRAS approved for drinking water. As such, it is suitable for any potable water supply as well as many other process fluids.
Apply solvent cement to both surfaces to be joined. Insert the pipe into the fitting to its full depth. Allow a few minutes for the cement to set before handling/ moving.
