Description
Modern modular filter system for professional water quality where space is at a minimum
Mature, professional technology with more than three years of development time
Filtration with a filter capacity to 60 µm
Automatic self-cleaning

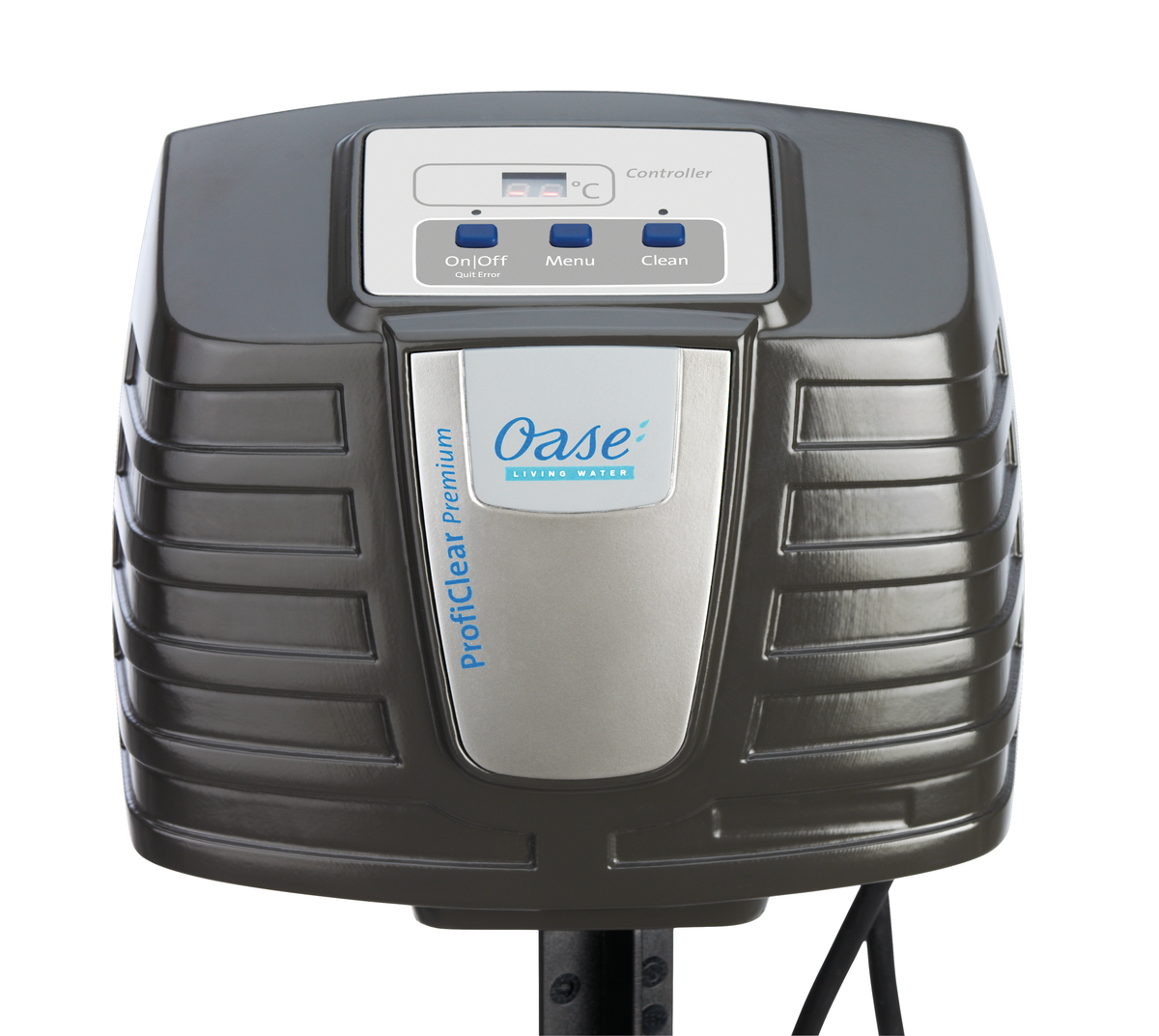

A microcontroller system, suitable for outdoor use, monitors and controls the functions

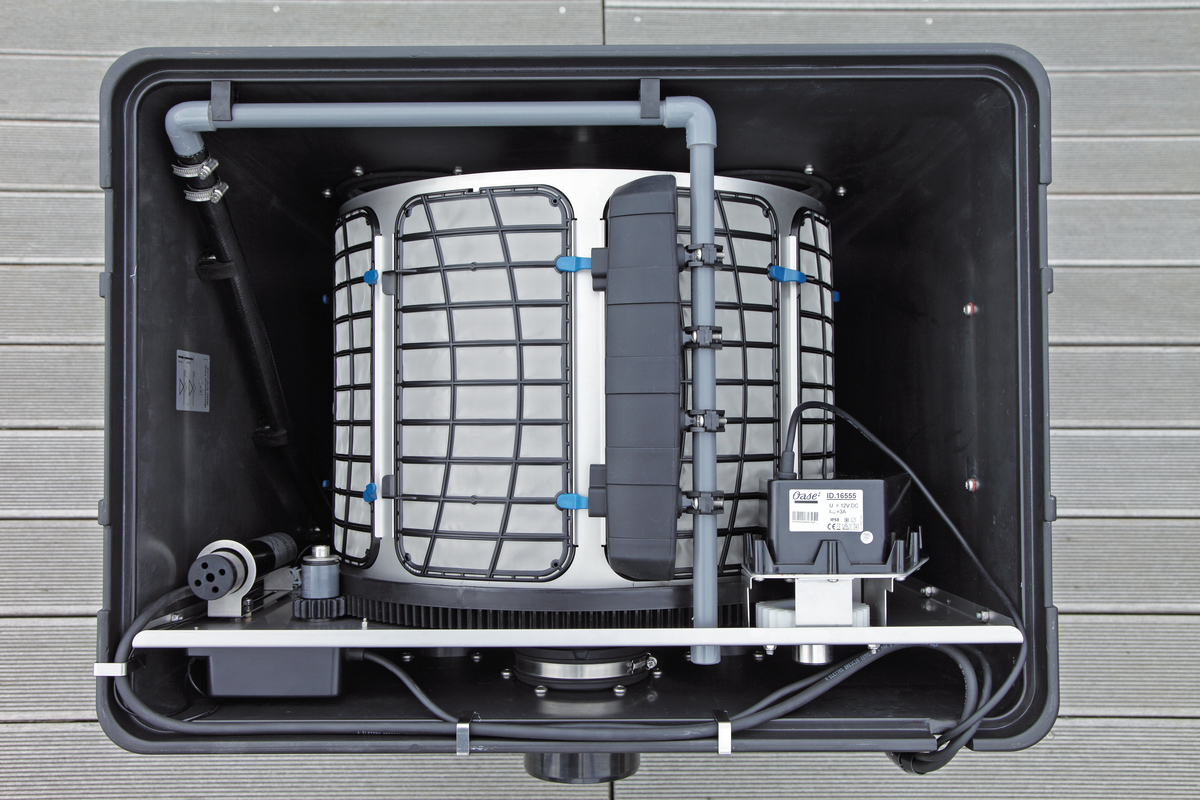

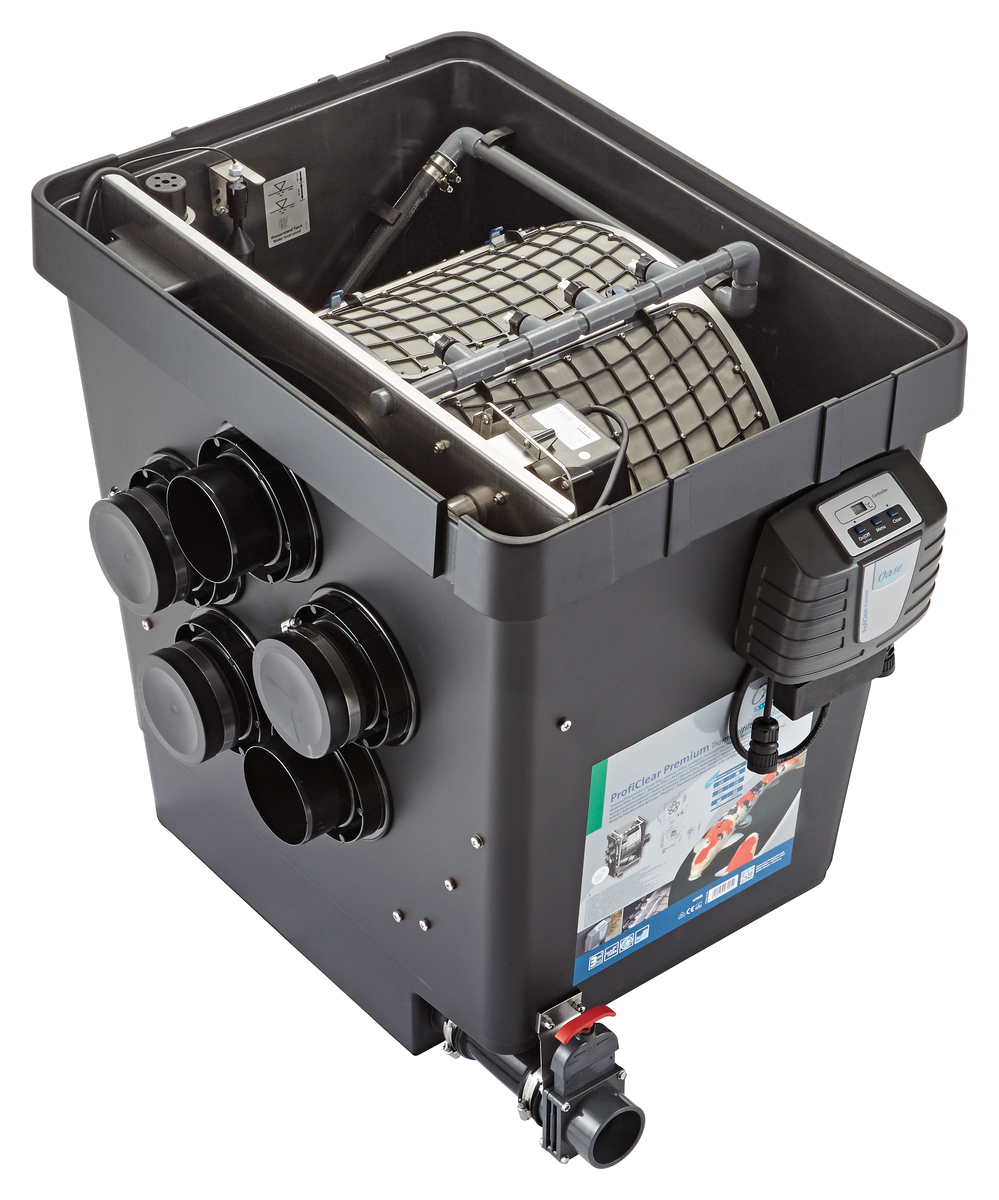

Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum
Particularly quiet in operation
Quality high-pressure pump for flushing the drum in the scope of delivery
Possibilities for connection to the Easy Garden Control System (EGC)
Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
Conveniently control all settings via an app with the Easy Garden Control System (EGC); existing systems can be upgraded using the separately available upgrade kit
Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
Outstanding filter capacity with intelligent control functions
Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
Flexible adaptation of the filter system to individual requirements (individual module)
Innovative and reliable product “Made in Germany” (except pressure pump)

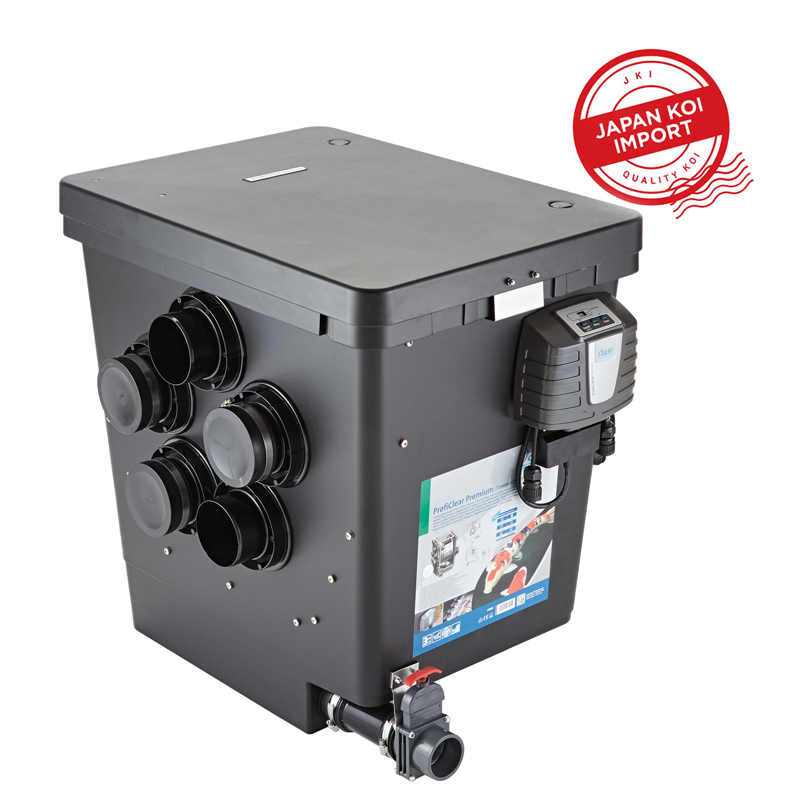

Full flexibility for the connection with up to 4x DN 110 inlets
Full design freedom with just 11.5 cm installation height above the water level
Supplemental sensor detects failure of the feed pump and reports this via display or EGC
Flow capacity up to 33 m³/h
Dimensions: 830 x 600 x 820 (L x W x H)
Rated voltage: 230 V / 50 Hz
Power consumption: 5w
Cleaning Power consumption: 1050 w
Cable Length: 2.00 + 2.00m
Net weight: 76.00kg
Guarantee (+ request guarantee) *: 2 + 1 Years
Control unit: Microcontroller
Temperature display: Digital
Coarse debris extraction: 60 µm
Number of nozzles/rinse quantity: 4 x 2.5 l/min
Scavenging pump: 6 bar
Automatic rinsing system: manually, Sensor or Time interval
Number of sieve elements: 8 units
Filter intake surface: 4200 cm²
Material: GRP Duroplast/stainless steel
Number of inlets; 4 units
Inlet connections: DN 110
Number of outlets: 2 units
Outlet connections: DN 150
Sludge discharge connections: DN 75, DN 110
Flush trough connection: DN 110
Connection to: Bitron Gravity
Min. flow rate: 10000 l/h
Max. flow rate: 33000 l/h
Installation height above water level: 11.0 cm
Possible water level difference: -20mm
Type of use: Gravity fed system
Other; Pollutant discharge incl. slide valve
