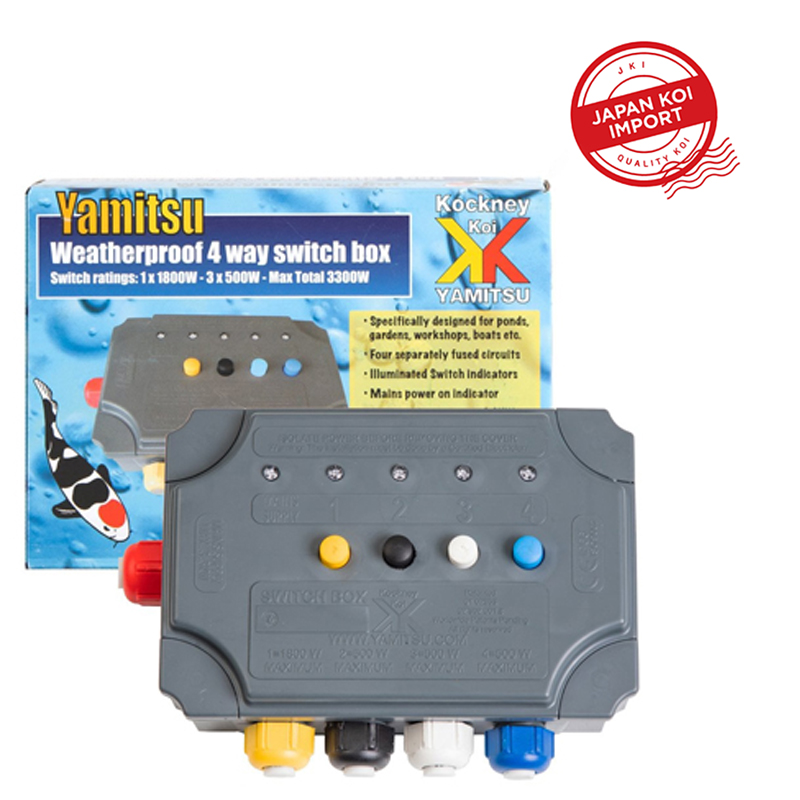

Yamitsu weatherproof 4 way switchbox.
Ideal for pond and garden use
Illuminated on/off power switch indicators
Separately fused circuits
IP66 & CE Approved
Mains power on indicator
Colour coded for ease of use
Unique wall mounting bracket
Suitable for 7mm to 12mm cable diameter
Switch life of over 50,000 cycles
The Kockney Koi Yamitsu Switch Boxes are state-of-the-art IP66 rated and CE approved weatherproof switch boxes specially suited for ponds, gardens, greenhouses and garden sheds etc. They are a must for separate switching of appliances outdoors.
Each Yamitsu Weatherproof Switch Box has a single switch rated to 1,800 watts with all subsequent switches rated up to 500 watts each, with all available switches being individually fused. The Switch Box comes supplied with a self locking wall mounting bracket, wall plugs and screws, so no holes have to be made in the main housing, ensuring its water tight integrity. The unit also comes with cable gland blanking plugs to seal unused outlets when not in use.
Colour coded cable glands and switches enable rapid identification and simple installation. Each switch has its own illuminated indicator to let you know which appliances are on. The unit readily accepts cable sizes from 7mm to 12mm.
Kockney Koi Yamitsu Weatherproof Switch Boxes Maximum Ratings:

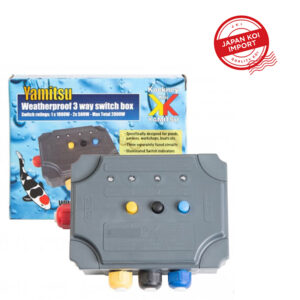

Kockney Koi Yamitsu 3 Way Switch Box -Designed for use up to 2.8KW
Kockney Koi Yamitsu 4 Way Switch Box -Designed for use up to 3.3KW
