Draco Bio unit Standard

£315.60 inc. VAT

All Draco units are built to order. Please ring 01480 465150 to order. Pallet delivery or collection only, usually 10 days.

Out of stock

Email when stock available



SKU: BI-STND Categories: , Tag:
JKI-logo
JKI-logo
JKI-logo
JKI-logo

Bio Units

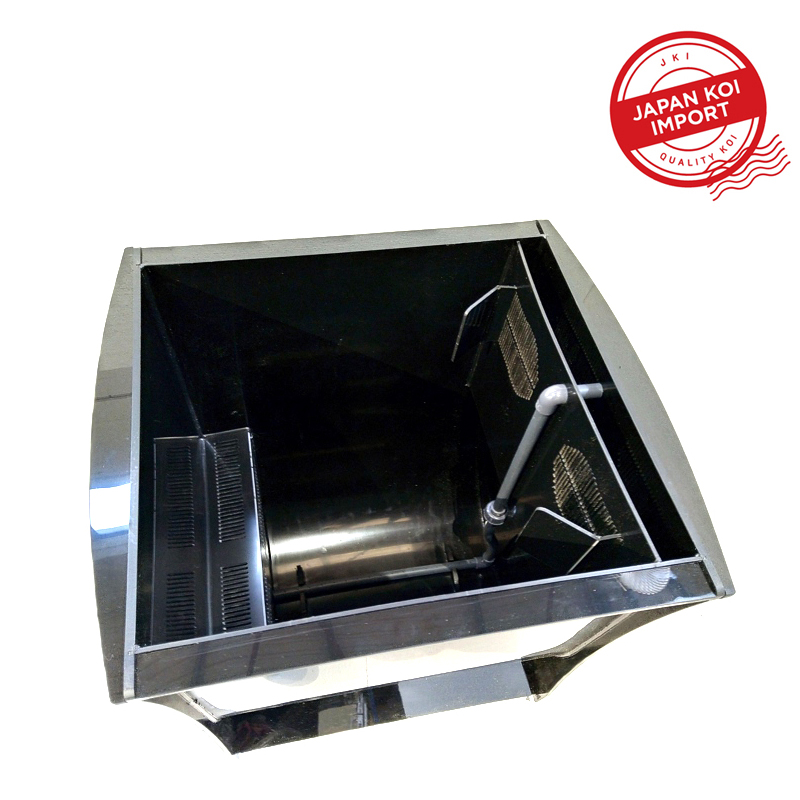

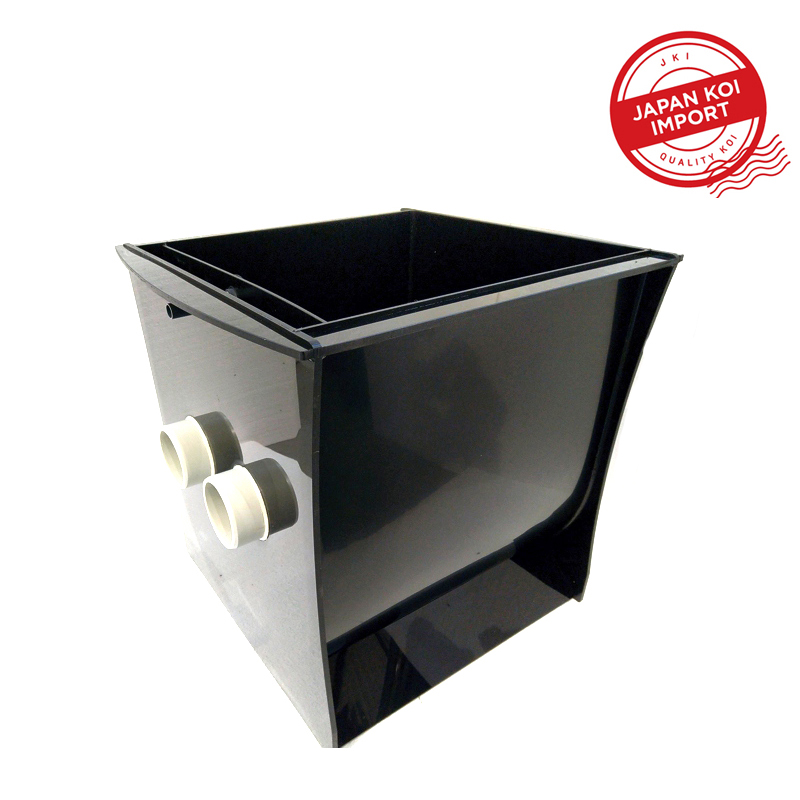

Designed to co-ordinate with the Solum Range of drum filters, they utilise the same curved base configuration to reduce dirt traps and can be installed either singly or in multiples, in parallel.

The Design also causes the bio media to more easily circulate, thereby increasing the amount of bio media your water touches as it travels through the unit.

Can be installed in multiple configurations to make best use of the space you have available.
How does it work?
Operation of the DracoDrum Bio Unit

Our bio unit is configured as a downward flow, diverted input unit with longitudinal air delivery, to manage water flow around the chamber, maximising the active volume for bio filtration.
3 Sizes
Standard

Twin 4” inlet / 2″ outlets but can be modified for individual needs.

3/4″ Ball valve drain

Dimensions – 610mm wide x 700mm long x 680mm depth.

Holds 100 litres of typical bio media in 185 litres of water.

Single central air line.

One unit capable of filtering ponds of approx. 4,000 UK gallons.
